Etrans-EMFIL ELECTROMAGNETIC FLOWMETER
Etrans-EMFIL Series ELECTROMAGNETIC FLOWMETER

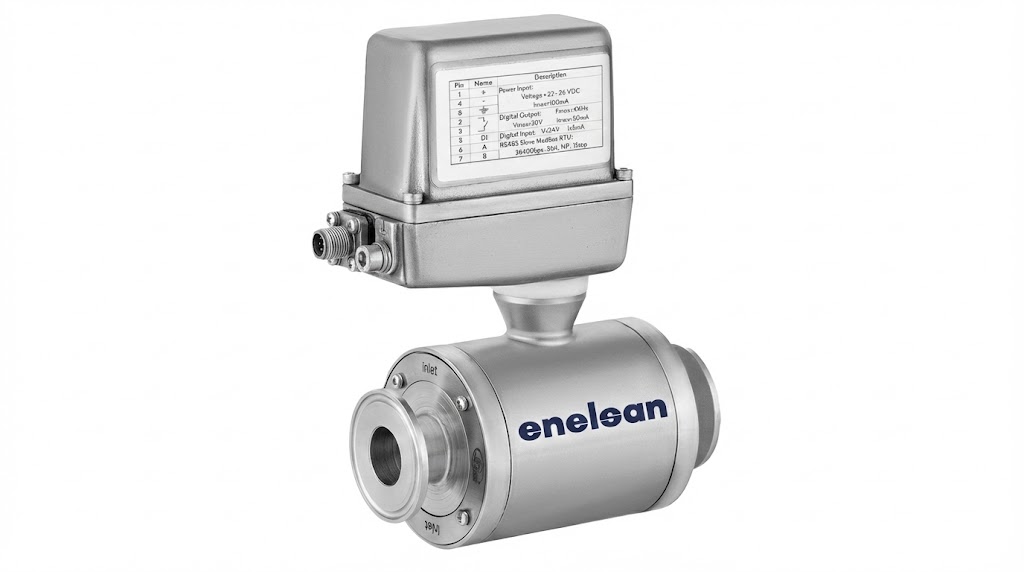

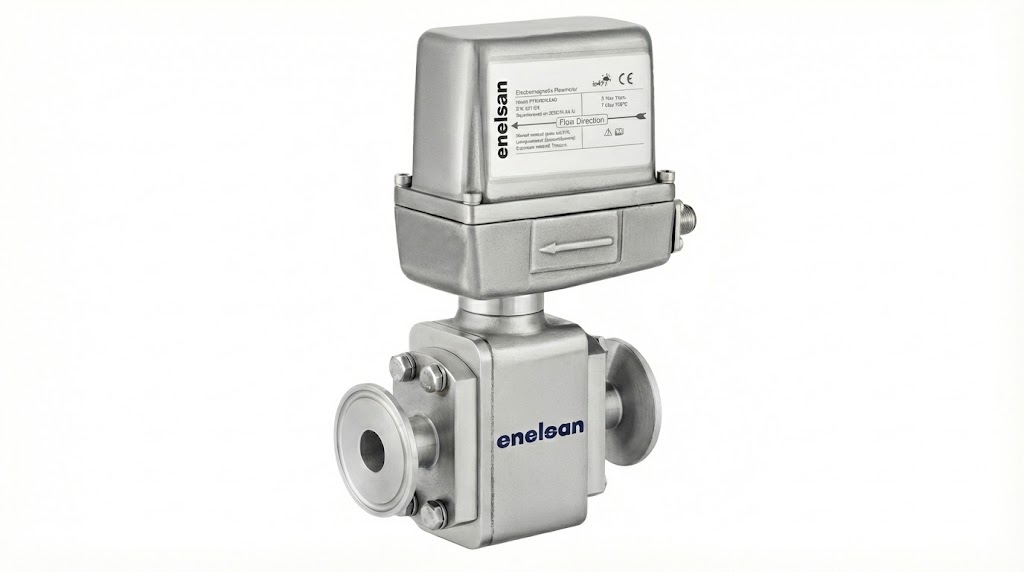

"The Etrans-EMFIL Stainless Steel Electromagnetic Flowmeter is an ideal solution, particularly for industrial liquid filling systems that require high precision and speed. Holding critical importance in the food, beverage, pharmaceutical, and chemical sectors, this device provides excellent repeatability in bottling lines, packaging units, and precision dosing processes. Thanks to its compact size options ranging from 6 mm to 25 mm and its fast response time, it can be easily integrated into modern linear and rotary filling machines, maximizing efficiency in mass production.
|
Features |
Description |
|---|---|
|
Mass Flow Accuracy |
± 0.2% |
|
Mass Flow Repeatability |
± 1/2 × zero calibration stability / flow range × 100%
|
|
Density Measuring Rang |
0.2 g/cm³ – 3.5 g/cm³ |
|
Density Accuracy |
± 0.002 g/cm³ |
|
Temperature Range |
-60 °C to +200 °C |
|
Temperature Accuracy |
Flow and Temperature: 4-20 mA Analog Output, Output impedance (Vs-12) / 0.02 Ohm |
|
Current Output |
4 – 20 mA |
|
Frequency / Pulse Output |
0 – 10 kHz |
| Batch Control Relay Contact Rating | 24 V / 0.1 A |
| Contact Type | Normally Open (NO) |
| Ambient Temperature Range | 0 °C to +40 °C |
| Ambient Humidity Resistance | < 90% RH (non-condensing) |
| Atmospheric Pressure Range | 86 kPa – 106 kPa |
| Power Supply | 24 VDC ±10% or 220 VAC ±10% |
| Power Consumption | < 15 W |
