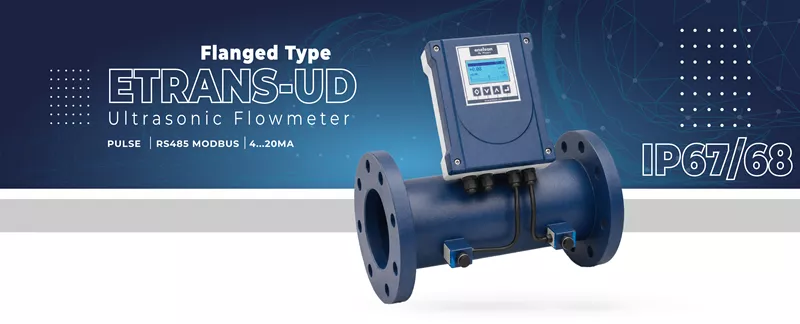

ETRANS-UD Series Fixed Type Ultrasonic Flowmeter
The ETRANS - UD ultrasonic flowmeter is designed with a wide measuring range and the ability to perform long-term online measurements. It features an IP67 converter protection class and an IP68 sensor protection class. It offers high accuracy in measuring the flow rates of water, chemicals, oils, and other liquids.
- BODY
| Measurement Range |
0,3 ... 15 m/s |
| Accuracy |
±%0,5 (of measured value) |
| Process Temperature |
-40...+110°C (Standard), -40 … +160 °C (Optional) |
|
Power Supply |
24 VDC, 220 VAC |
| Pipe Diameter | Sensor 1: DN15–DN100 Sensor 2: DN50–DN800 Sensor 3: DN800–DN6000 |
| Outputs | 4-20 mA, Pulse, RS485 Modbus |
| Protection Class | IP67 (Transmitter), IP68 (Sensor) |
