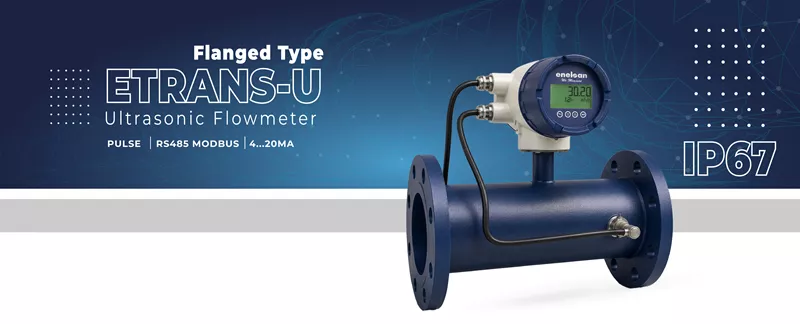

ETRANS-U Series Flanged Type Ultrasonic Flowmeter
ETRANS-U Series Flanged Type Ultrasonic Flowmeter
Flanged ultrasonic flowmeters offer easy installation and stable measurement thanks to their fixed flange mounting. The operating principle is the same as portable ultrasonic flowmeters. Since the sensors are pre-mounted to fit the flange dimensions, no extra adjustments are required.
Developed with 12 years of manufacturing experience, this model boasts a fast, reliable, and high-performance structure thanks to its high-speed processors.
|
Features |
Description |
|---|---|
|
Measurement Range |
± %0,5 |
|
Process / Temperature |
-40 … +110 °C (Standard) -40 … +160 °C (Optional) |
| Power Supply | 24 VDC, 220 VAC |
| Output | 4-20 mA, Pulse, RS485 MODBUS |
| Protection Class | IP67, IP68 |
| Diameter (Pipe Size) | DN15 … DN6000 |
| Record | SD Kart 4GB (opsiyonel) |
| Sensor Types | TS2 Small Size /TM1 Medium Size/ L1 Large Size |
