Etrans SFRC SERIES

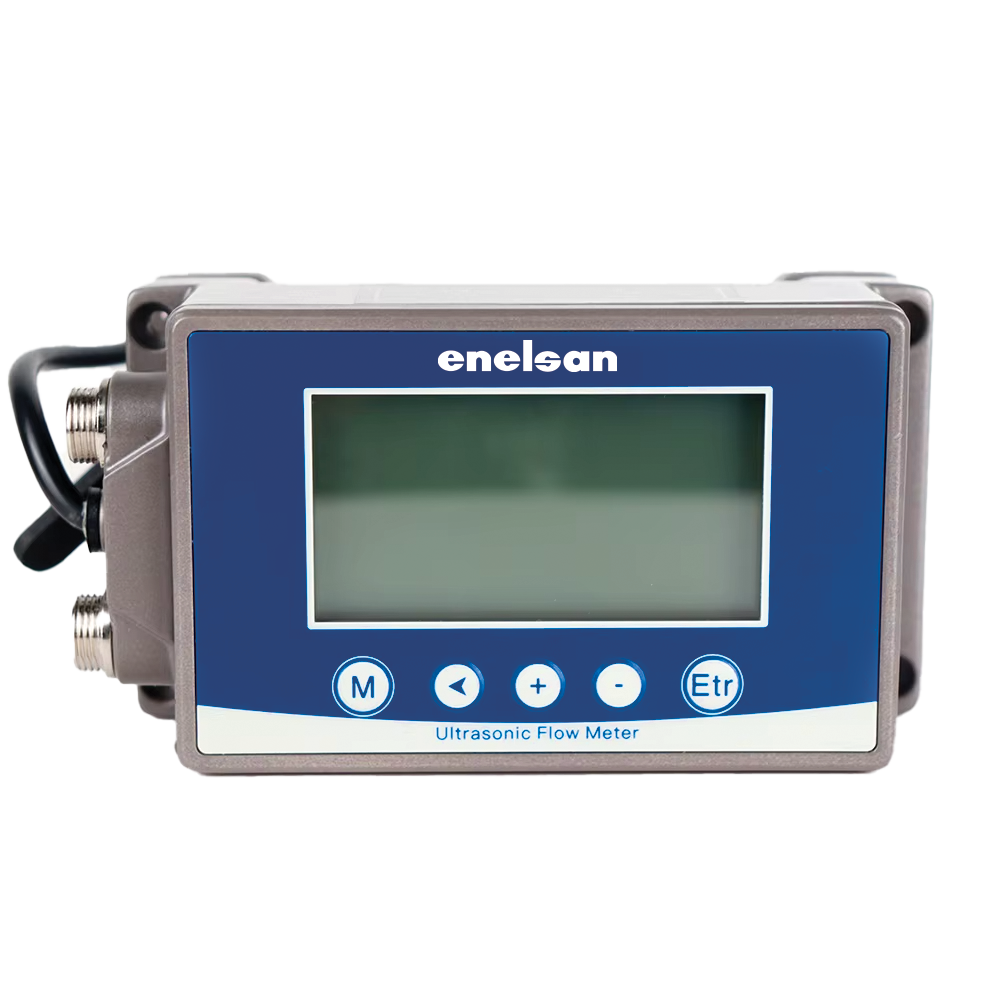

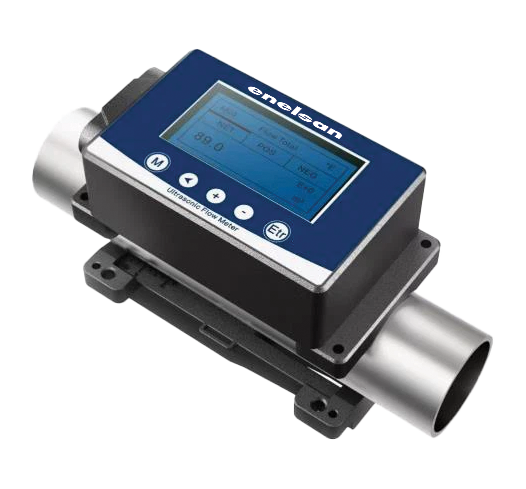

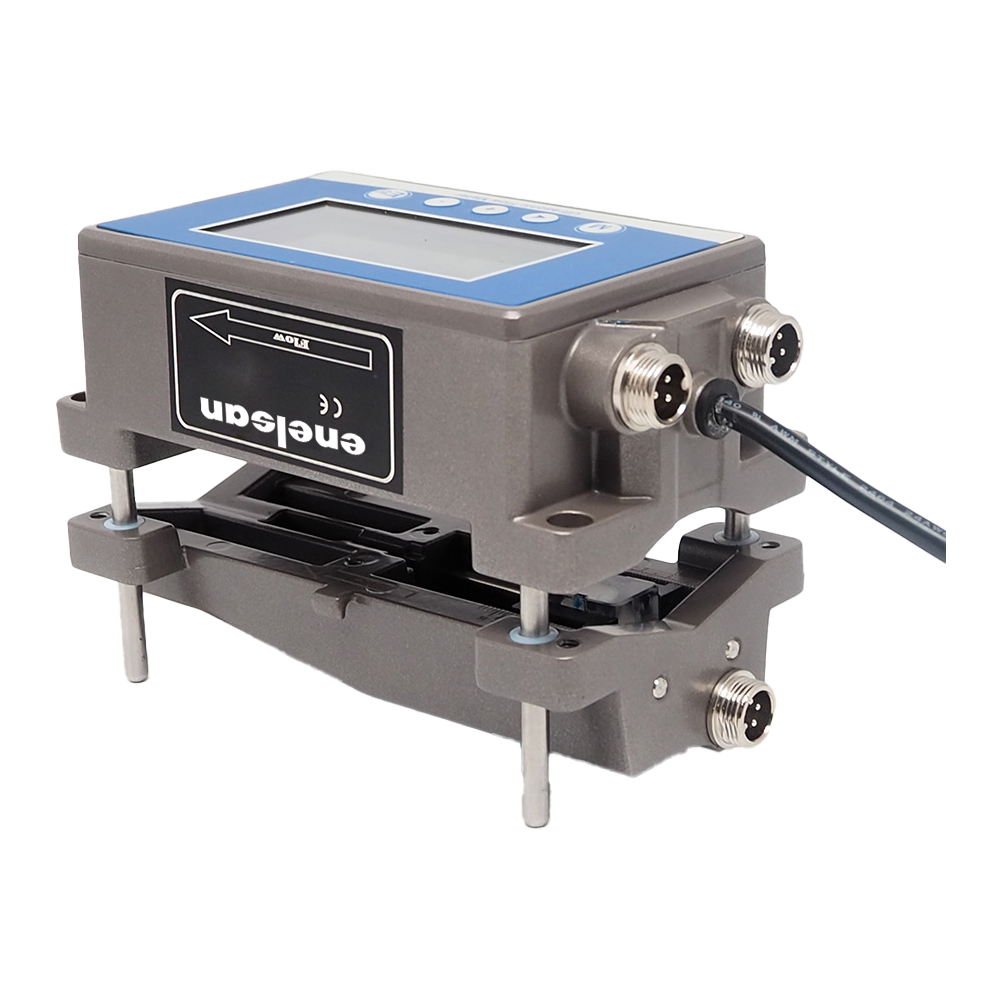

The SFRC DN15-DN40 Universal Clamp-on Ultrasonic Flow Meter is an innovative, non-invasive measurement solution designed specifically for small-diameter pipes ranging from 1/2 inch to 1.5 inches.
|
Features |
Description |
|---|---|
|
Pipe material |
Metal / PVC, PP or PVDF rigid plastic pipe |
| Liquid type | Water/other liquid (single liquid medium without solid particles or impurities) |
| Temperature range | 0.1 m/s |
| Display | 256*128, LCD |
| Response time | 0.5-60s |
| Accuracy | 300ms |
| Data storage time | 2560x1440 px, JPEG & PNG |
| Memory for data backup | EEPROM (data storage: more than 10 years, data read/write frequency: more than 1 million times) |
| Power and I/O connection | M12 type aviation plug |
| Output | 4-20mA |
| Communication | Modbus RS485 / M-bus |
| Output options | OCT (pulse output) / one relay alarm (please contact the factory) |
| Power supply | 10-24V VDC |
| Electrical power | <3W |
| Protection circuit | Power reverse connection protection, power surge protection, Output short circuit protection, output surge protection |
| Protection class | IP65 |
| Temperature | -10 to 60 °C (no freezing) |
| Relative humidity | 35 to 85% RH (no condensation) |
| Vibration resistance | 10 to 55Hz Double amplitude 1.5mm, 2 hours in each XYZ axis |
| Shock resistance | 100 m/s 16 ms shock for X, Y and Z axis, 1000 times |
| Main material | Aluminum, industrial plastics |
| Cable length | 2m (standard), PT1000 sensor standard cable length 9m |
