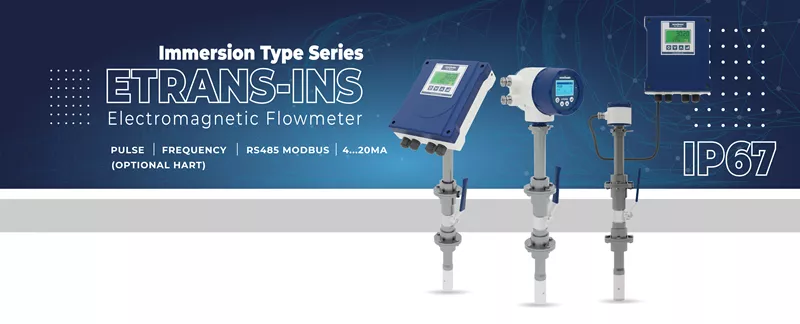

Etrans-INS Series Compact Type Immersion Electromagnetic Flowmeter
Etrans-INS Series Compact Type Electromagnetic Flowmeter
- BODY
| Nominal Sizes |
DN200–DN1000 (standard), |
| Nominal Pressure |
PN6, PN10, PN16, PN25, PN40, PN63, PN100 , (opt. ANSI)* |
| Process Temperature |
-20 ... +150 °C |
|
Lining Options |
Teflon (PTFE) |
| Electrode Material | 316L Stainless Steel (optional Hastelloy C, Tantalum, Titanium |
| Accuracy | < 1 m/s: ±1% FS, 1 m/s: ±0.5% FS, < 10 m/s: ±0.5% FS |
| Protection Class | IP67 (Compact), IP68 (Remote) |
- TRANSMITTER
| Mounting | Compact or Remote |
| Power Supply | 220 VAC / 24 VDC / Battery (optional) |
| Display | 4-button, 3-line, 30-digit LCD |
| Language Options | Turkish, English |
| Output Signals | 4-20 mA, Frequency, Pulse |
| Alarms | 1 configurable passive pulse output (24 VDC, 100 mA, 15 k ohm ), selectable for empty pipe detection, sensor fault, or limit exceedance conditions |
| Communication | RS485 Modbus (standard), HART (optional) |
| Protection Class | IP67 |
