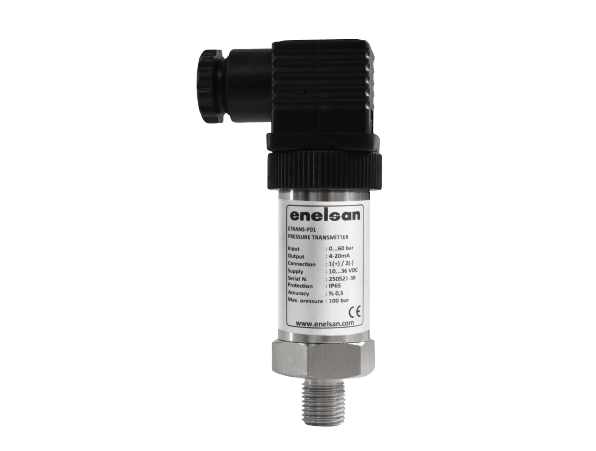

Etrans-P01 Finger-Type Pressure Transmitter
The Enelsan Etrans-P01 is a high-performance pressure transmitter designed for demanding industrial applications and research. Utilizing a piezoresistive measuring cell, it provides precise and reliable measurements of relative and absolute pressure. Its robust design ensures long-term stability even when exposed to extreme temperatures, vibrations, and aggressive media.
| Features | Description |
| Pressure Range | -1...+2000 bar |
| Accuracy | ±%0,25 FS, (optional ±0.2%, ±0.1%, or ±0.075% FS |
| Process Temperature | -40... +80°C (Standard), -40 … +250 °C (Optional |
| Process Connection | G1/4”, G1/2”, 1/4” NPT, 1/2” NPT Female, Flush, Flanged |
| Housing Material | Stainless Steel |
| Power Supply | 10...36 VDC |
| Outputs | 4...20 mA, 0...10 V, 0,5...4,5 V, HART, RS485 Modbus |
| Protection Class | IP65 |
