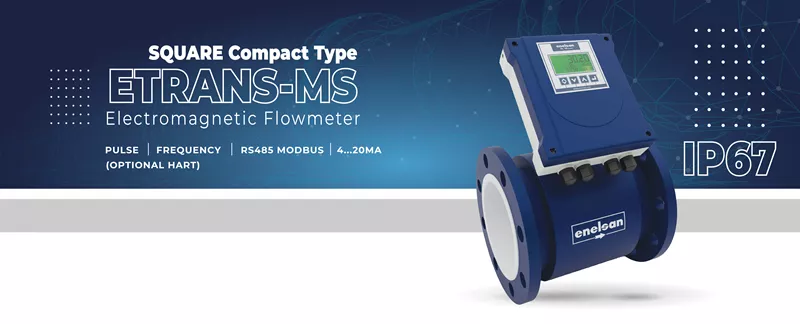

Etrans-MS SERIE Battery-powered EMF Square Compact
Etrans-MS Square Compact Electromagnetic flowmeters can be easily used in all liquids with conductivity over 20 uS. They provide a realiable and long-lasting measurement opportunity by changing the sensor selection in liquids with corrosive properties according to different substances. The inner surface can be preferred as rubber or PTFE.
- BODY
| Nominal Sizes | DN15–DN300 Cast Body, DN350–DN3000 Carbon Steel Body |
| Nominal Pressure | PN6, PN10, PN16, PN25, PN40, PN63, PN100 , (opt. ANSI)* |
| Process Temperature | -20 ... +150 °C ** |
| Lining Options | Ebonite, EPDM, Teflon (PTFE), PFA Lining |
| Electrode Material | 316L Stainless Steel (optional Hastelloy C, Tantalum, Titanium, Platinum Rhodium) |
| Accuracy | ±0.2% (optional ISO 17025 accredited |
| Protection Class | IP67 (Compact), IP68 (Remote) |
(*) Varies depending on pipe diameter
(**) Depends on lining material
-TRANSMITTER
| Mounting | Compact or Remote |
| Power Supply | 220 VAC / 24 VDC / Battery (optional |
| Display | 4-button, 3-line, 30-digit LCD |
| Language Options | Turkish, English |
| Output Signals | 4-20 mA, Frequency, Pulse |
| Alarms | 1 configurable pulse output (24 VDC, 100 mA, 15 k ), selectable for empty pipe detection, sensor fault, low flow, or high flow conditions; flow direction can be configured. |
| Communication | RS485 Modbus (standard), HART (optional) |
| Protection Class | IP67 |
