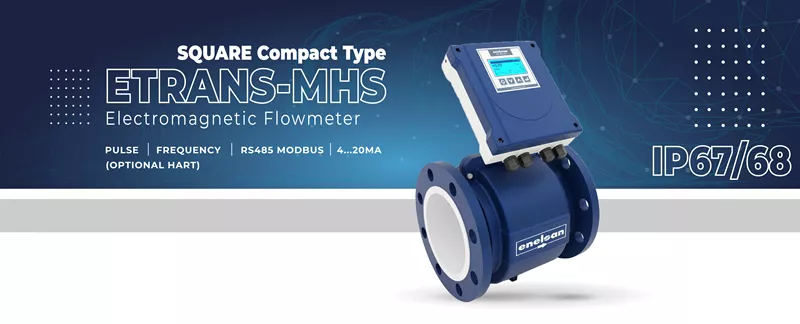

Etrans-MHS Series Square Compact

- BODY

Nominal Sizes	DN15–DN300 Aluminum (std.), Carbon Steel (opt.), Steel Stainless (opt.) > DN300: Carbon Steel (std) / Stainless Steel (optional)
Nominal Pressure	PN6, PN10, PN16, PN25, PN40, PN63, PN100, (opt. ANSI)*
Process Temperature	-20 ... +150 °C **
Lining Options	Ebonite, EPDM, Teflon (PTFE)
Electrode Material	316L Stainless Steel (optional Hastelloy C, Tantalum, Titanium, Platinum Rhodium)
Accuracy	±0.2% (optional ISO 17025 accredited)
Protection Class	IP67 (Compact), IP68 (Remote)

- TRANSMITTER

Mounting	Square Compact or Remote
Power Supply	220 VAC / 24 VDC (one can be selected) / Battery (optional)
Display	Touchscreen LCD, 64×128
Language Options	Turkish, English, German, Spanish
Output Signals	4–20 mA, 0–10 V, Frequency, Pulse, Relay
Digital Input	Flow reading start/stop / Clear errors / Reset total flow
Communication	Puls, Frekans, RS485 MODBUS, 4...20mA, (Opsiyonel HART)
Protection Class	IP67
