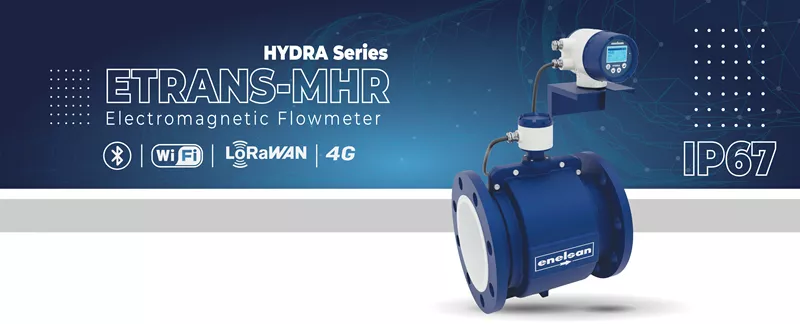

Etrans -MHR
Enelsan Etrans -MHR Series electromagnetic flowmeters can be easily used for volumetric flow measurements of water and wastewater applications, as well as any water-based or conductive liquids.
- BODY
| Nominal Sizes |
DN15–DN300 Aluminum (std.), Carbon Steel (opt.), Steel Stainless (opt.) > DN300: Carbon Steel (std) / Stainless Steel (optional) |
| Nominal Pressure |
PN6, PN10, PN16, PN25, PN40, PN63, PN100, (opt. ANSI)* |
| Process Temperature |
-20 ... +150 °C ** |
|
Lining Options |
Ebonite, EPDM, Teflon (PTFE) |
| Electrode Material | 316L Stainless Steel (optional Hastelloy C, Tantalum, Titanium, Platinum Rhodium) |
| Accuracy | ±0.2% (optional ISO 17025 accredited) |
| Protection Class | IP67 (Compact), IP68 (Remote) |
- TRANSMITTER
| Mounting | Compact or Remote |
| Power Supply | 220 VAC / 24 VDC / Battery (optional) |
| Display | Touchscreen LCD, 64×128 |
| Language Options | Turkish, English, German, Spanish |
| Output Signals | 4–20 mA, 0–10 V, Frequency, Pulse, Relay |
| Data Logging | Optional 65,000-record data logger |
| Communication | RS485 Modbus, Wi-Fi, Bluetooth, LoRaWAN (optional 4G, GSM, HART, Profibus) |
| Protection Class | IP67 |
