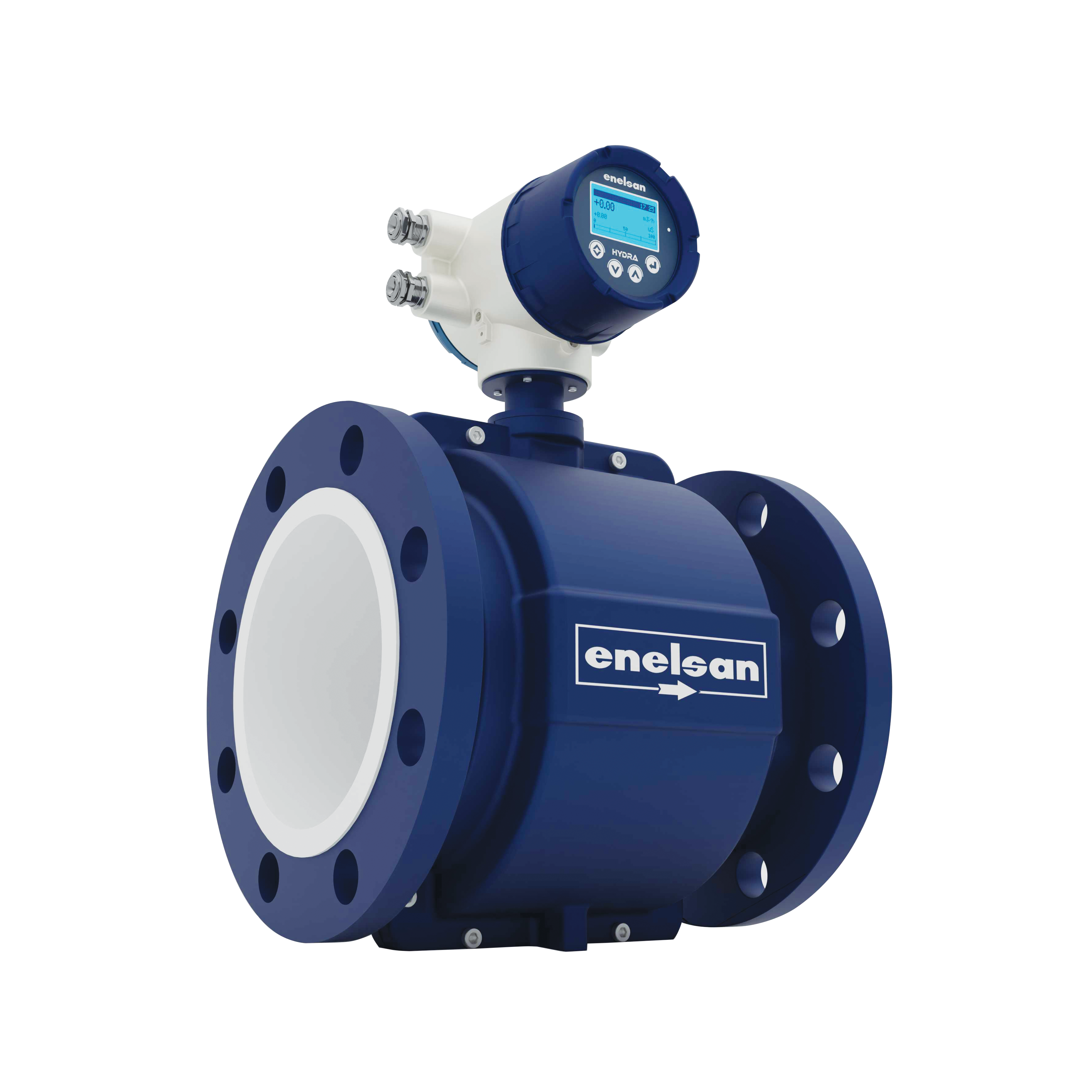

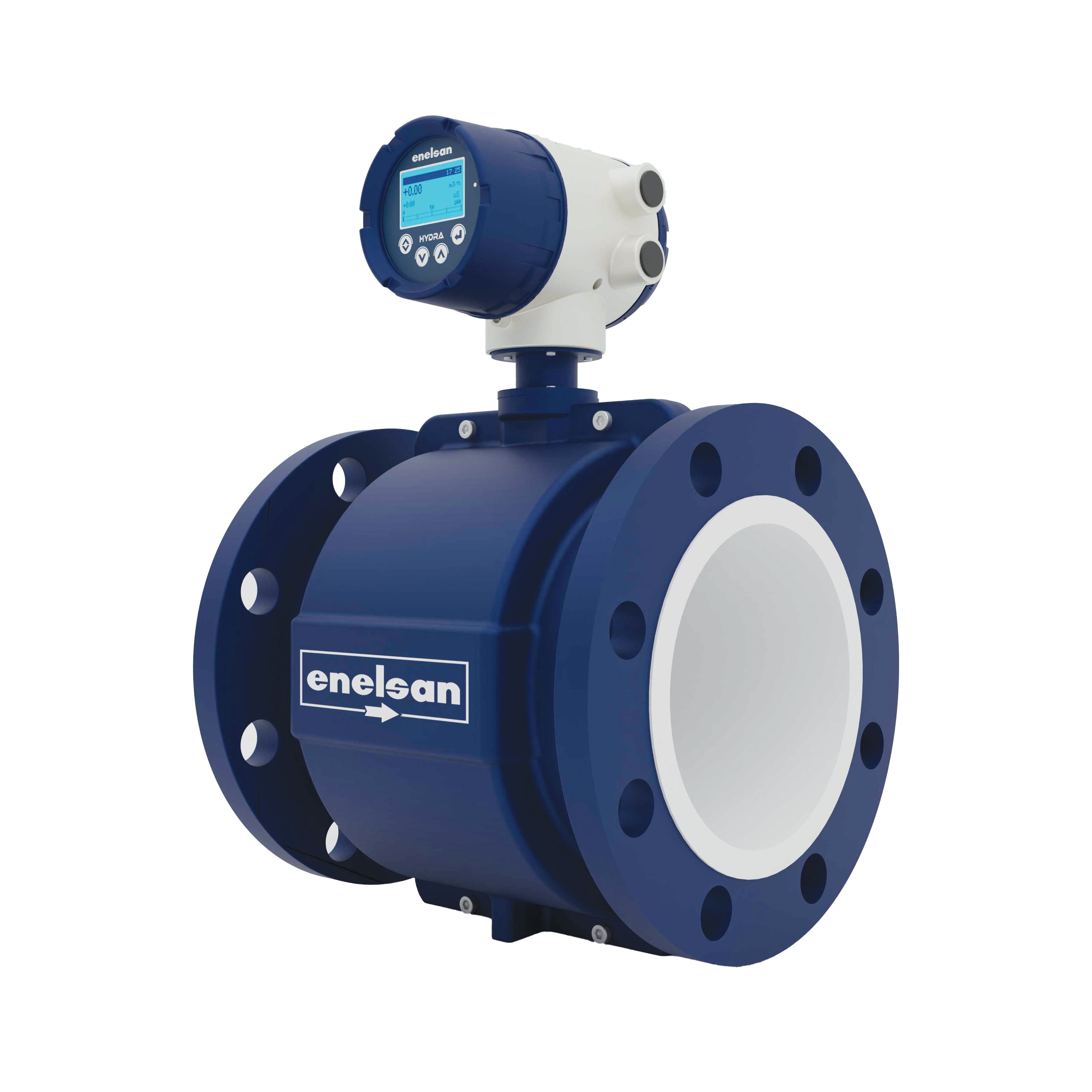

ETRANS -MH Series
ETRANS -MH Series electromagnetic flowmeters can be easily used for volumetric flow measurements of
water and wastewater applications, as well as any water-based or conductive liquids.
- BODY
| Nominal Sizes |
DN15–DN300 Aluminum (std.), Carbon Steel (opt.), Steel Stainless (opt.) > DN300: Carbon Steel (std) / Stainless Steel (optional) |
| Nominal Pressure | PN6, PN10, PN16, PN25, PN40, PN63, PN100 , (opt. ANSI)* |
| Process Temperature | -20 ... +150 °C ** |
| Lining Options | Ebonite, EPDM, Teflon (PTFE) |
| Electrode Material | 316L Stainless Steel (optional Hastelloy C, Tantalum, Titanium, Platinum Rhodium) |
| Process Conductivity | 5 µS/cm |
| Measurement Speed Range | 0,02 ... 12 m/s |
| Accuracy | ±0.2% (optional ISO 17025 accredited) |
| Protection Class | IP67 (Compact), IP68 (Remote) |
-TRANSMITTER
| Mounting | Compact or Remote |
| Power Supply | 220 VAC / 24 VDC (one can be selected) / Battery (optional) |
| Display | Backlight LCD Display 64x128 |
| Language Options | English, German, Spanish (2 languages can be selected) |
| Output Signals | Standard (4-20 mA, 0-10V, Frequency, Pulse) Alarm/Status = 2 x Relay Output |
| Digital Input | Flow reading start/stop / Clear errors / Reset total flow |
| Communication | Wifi, Bluetooth, (Standard) / RS485 Modbus (standard), HART,PROFIBUS (Optional) / LoraWAN,4G (Optional) |
| Data Logging | Datalogger with 65,000 data memory |
| Protection Class | IP67 |
