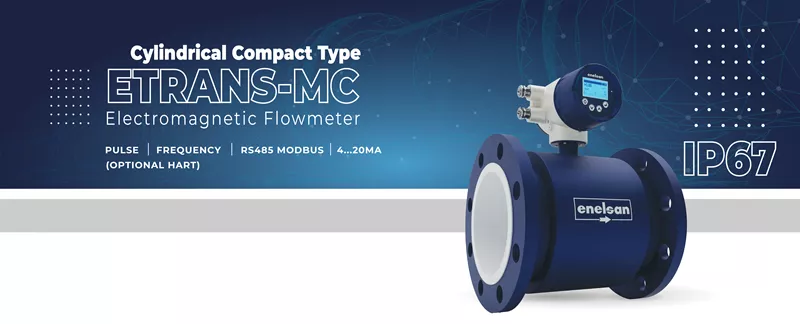

Etrans-MC Series Cylindrical Compact
Etrans-MC Cylindrical Compact Electromagnetic flowmeters can be easily used in all liquids with conductivity over 20 uS. They provide a realiable and long-lasting measurement opportunity by changing the sensor selection in liquids with corrosive properties according to different substances. The inner surface can be preferred as rubber or PTFE.
- BODY
| Nominal Sizes |
DN15–DN300 Aluminum (std.), Carbon Steel (opt.), Steel Stainless (opt.) > DN300: Carbon Steel (std) / Stainless Steel (optional) |
| Nominal Pressure |
PN6, PN10, PN16, PN25, PN40, PN63, PN100, (opt. ANSI)* |
| Process Temperature |
-20 ... +150 °C ** |
|
Lining Options |
Ebonite, EPDM, Teflon (PTFE), PFA Lining |
| Electrode Material | 316L Stainless Steel (optional Hastelloy C, Tantalum, Titanium, Platinum Rhodium) |
| Accuracy | ±0.2% (optional ISO 17025 accredited) |
| Protection Class | IP67 (Compact), IP68 (Remote) |
- TRANSMITTER
| Mounting | Compact or Remote |
| Power Supply | 220 VAC / 24 VDC / Battery (optional) |
| Display | 4-button, 3-line, 30-digit LCD |
| Language Options | Turkish, English |
| Output Signals | 4-20 mA, Frequency, Pulse |
| Alarms | 1 configurable pulse output (24 VDC, 100 mA, 15 k ), selectable for empty pipe detection, sensor fault, low flow, or high flow conditions; flow direction can be configured. |
| Communication | RS485 Modbus (standard), HART (optional) |
| Protection Class | IP67 |
