Etrans-M0R Seperate Type

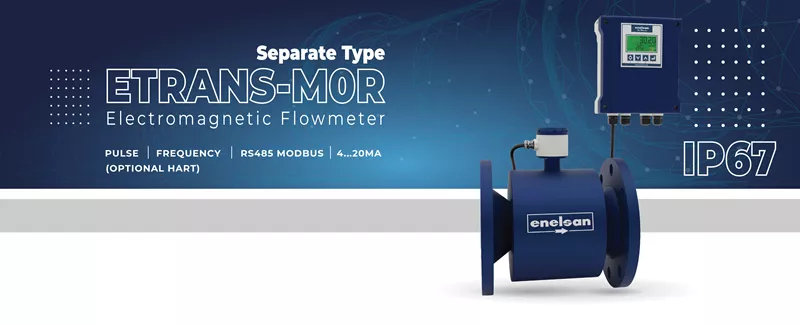

Etrans-M0R Seperate Type Electromagnetic Flowmeter
- BODY
| Nominal Sizes |
DN50-DN3000 Carbon Steel Body |
| Nominal Pressure |
PN6, PN10, PN16, PN25, PN40, PN63, PN100 , (opt. ANSI)* |
| Process Temperature |
-20 ... +80 °C / -20 ... +150 °C |
|
Lining Options |
Ebonite, Teflon (PTFE) |
| Electrode Material | 316L Stainless Steel (optional Hastelloy C, Tantalum, Titanium, Platinum Rhodium) |
| Accuracy | ±0.2% (optional ISO 17025 accredited) |
| Protection Class | IP67 (Compact), IP68 (Remote) |
- TRANSMITTER
| Mounting | Compact or Remote |
| Power Supply | 220 VAC / 24 VDC / Battery (optional) |
| Display | 4-button, 3-line, 30-digit LCD (Turkish–English language options) |
| Language Options | Turkish, English |
| Output Signals | 4-20 mA, Frequency, Pulse |
| Alarms | 1 configurable passive pulse output (24 VDC, 100 mA, 15 k ohm ), selectable for empty pipe detection, sensor fault, low flow, or high flow conditions; flow direction can be configured. |
| Communication | RS485 Modbus (standard), HART (optional) |
| Protection Class | IP67 |
