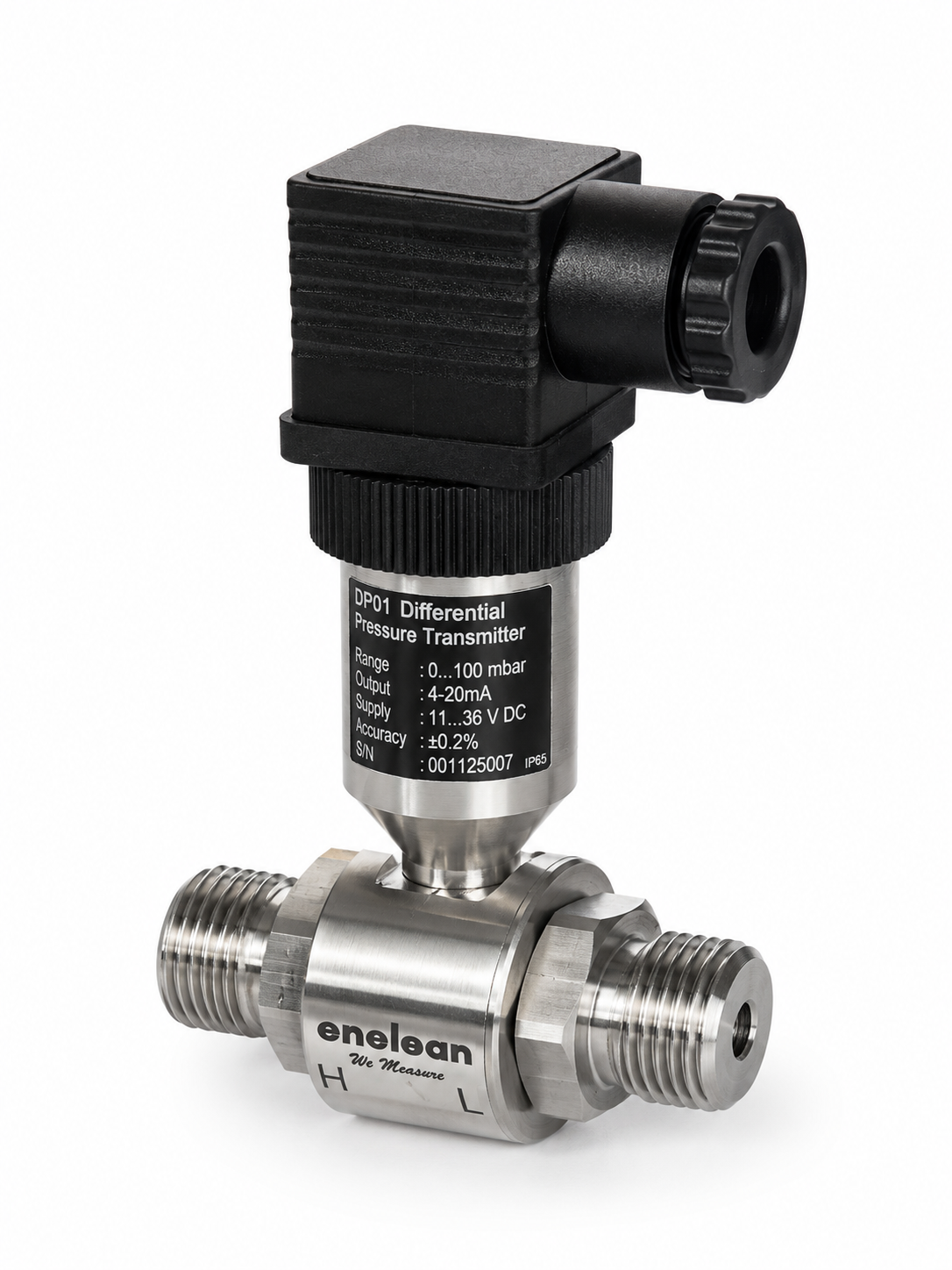

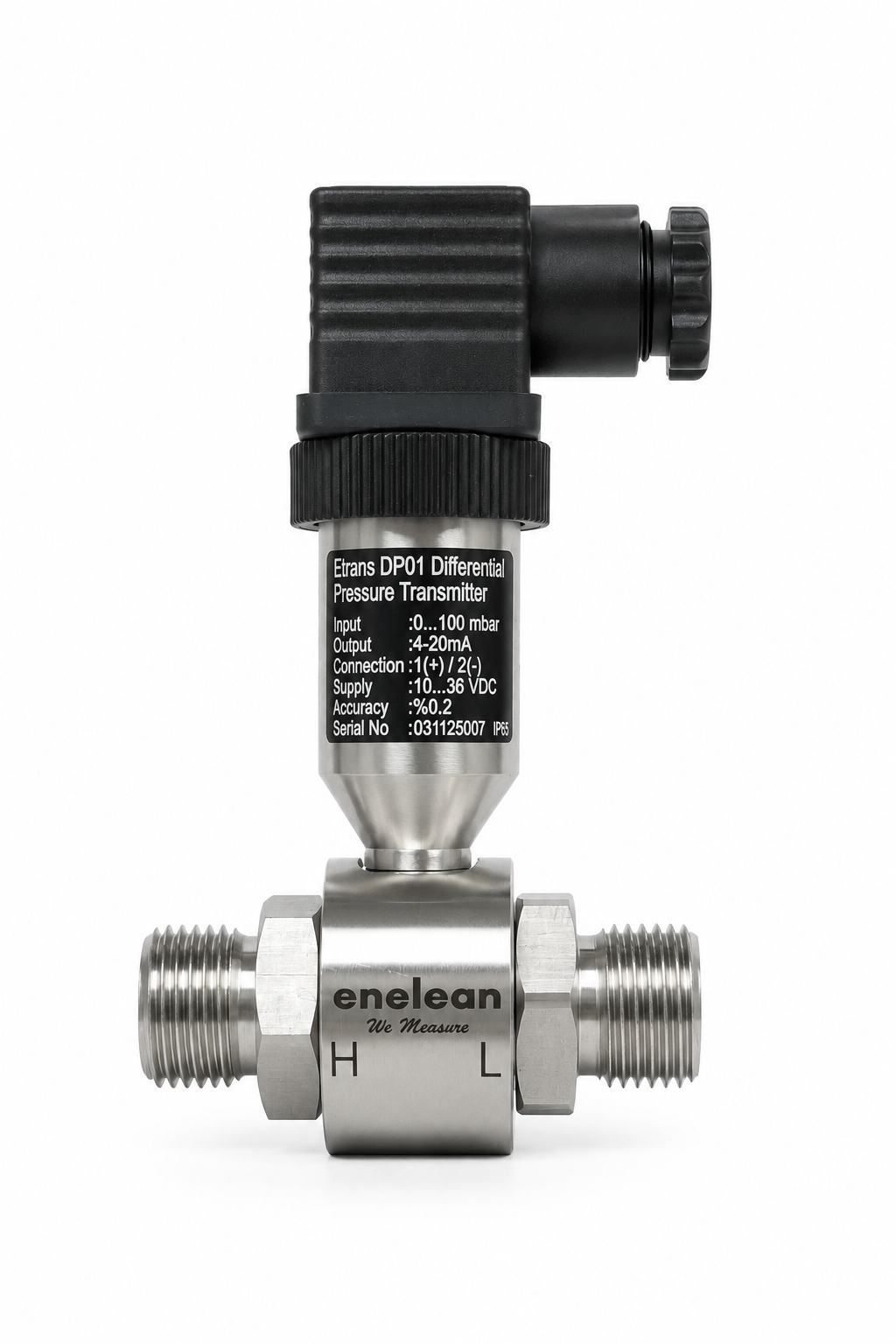

Etrans-DP01 Finger-Type Differential Pressure Transmitter

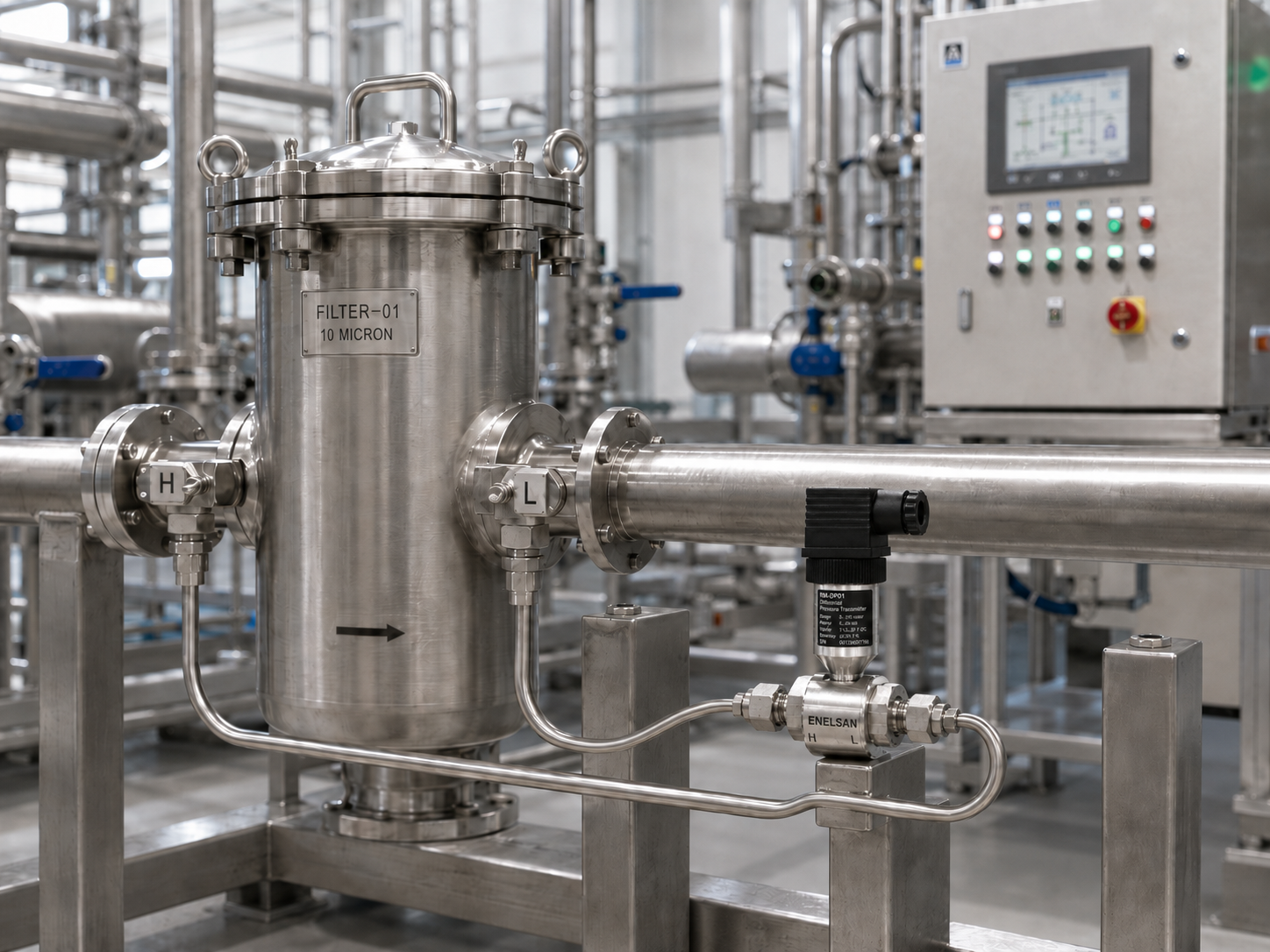

Enelsan Etrans-DP01 is a reliable differential pressure transmitter designed to measure the pressure difference between two points in industrial processes with the highest precision...
Description

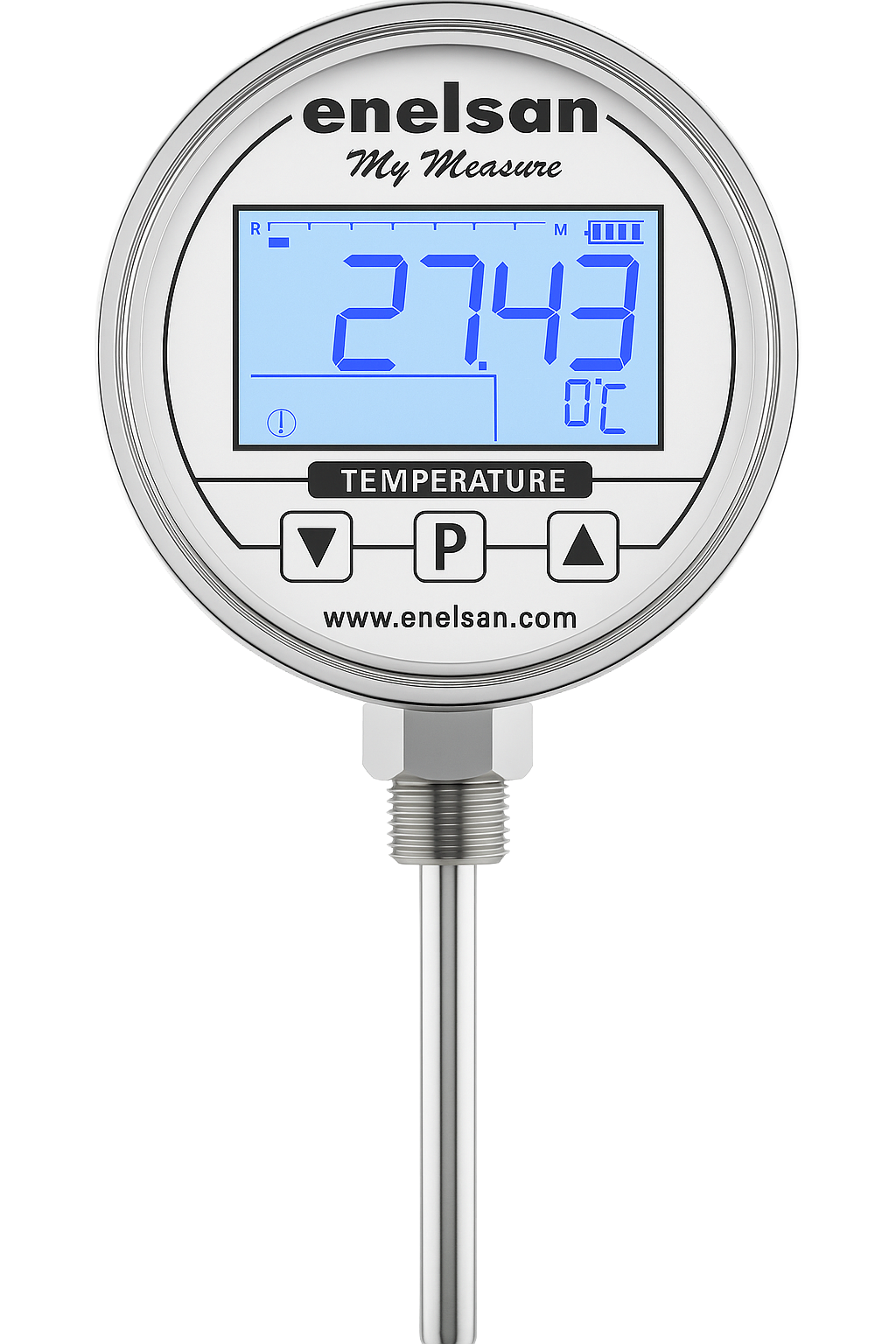

Overview: The ETRANS T09 is a compact, battery-powered digital thermometer designed for high-precision measurements.
Design: It features a durable stainless steel body, a hermetically sealed sensor for harsh environments, and a large backlit display with a user-friendly menu.
Versatility: Ideal for industrial processes, HVAC, food production, and labs. Its modular design allows for easy battery/electronics replacement, ensuring long-term energy independence.
|
Feature |
Description |
|---|---|
|
Measuring Principle |
Piezoresistive Measuring Cell |
|
Measurement Variables |
Relative and Absolute Pressure |
|
Measuring Range |
Max. 40 BAR |
|
Current Output |
4–20 mA / 4–20 mA + HART / Optional 0–10 V etc. |
|
Load |
(U–10 V) / 0,02 A |
|
Accuracy |
Full Scale %0,2 / %0,1 / %0,25 |
|
Zero Point |
±0,2 mV/V |
|
Zero |
±0,02 % TS/K |
|
Operating Temperature |
-40° ~ 135°C |
| Protection Class | IP65 |
| Power Supply Voltage | 10…36 VDC for mA / 11-28VDC for Voltage |
| Sensor | Stainless Steel 316L, Hastelloy C, other materials |
| Process Connection material | Stainless Steel 316L, Hastelloy C, other materials |
| O-Ring | Viton / Nbr |
| Outer Box | Stainless Steel |
| Terminal | Plastic |
| Process Connections | G1/4", G1/2" etc |
| Weight | Approximately 0,35 kg |
