ETRANS-BF-2 Series Ultrasonic Flowmeter
The ETRANS-BF-P2 / ETRANS-P2 Ultrasonic Flowmeter and Heat Meter offers high-precision measurement in water, energy management, and industrial processes. Thanks to contactless ultrasonic technology, it is mounted without damaging the pipe and is easy to commission.

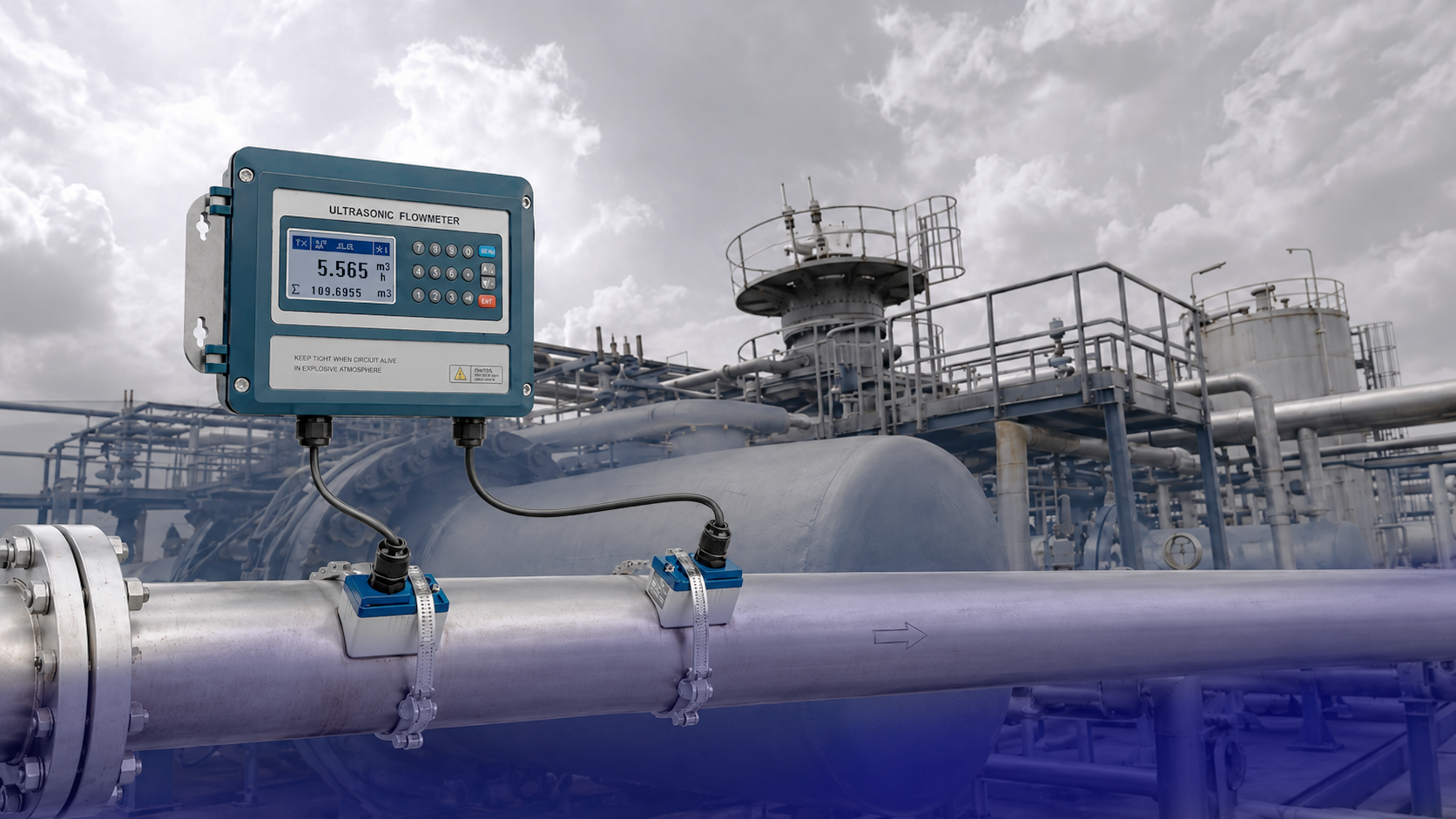

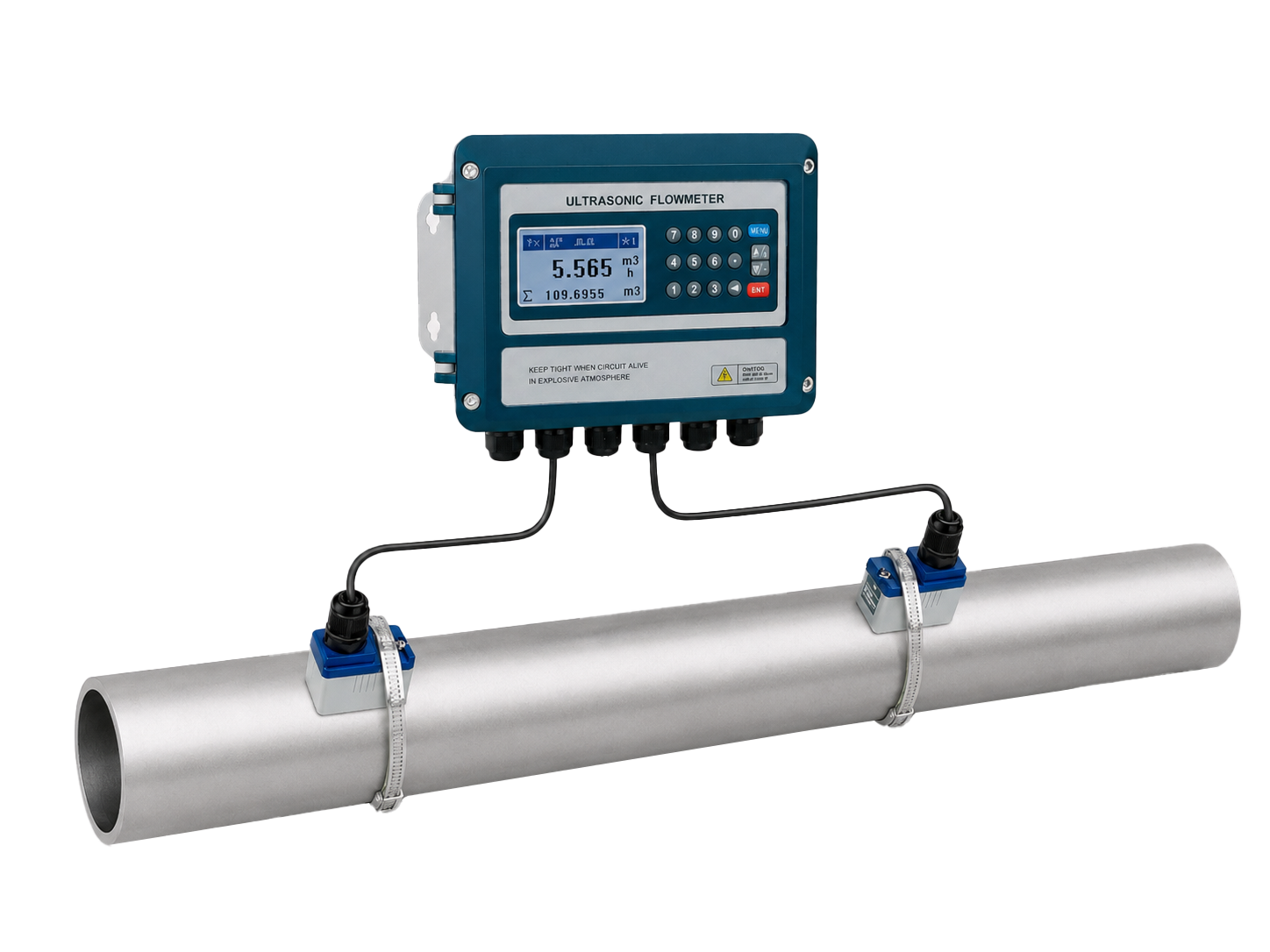

The device consists of a converter and transducers. It works with clamp-on, insertion, or inline type sensors depending on the application. Optional PT100/PT1000 temperature sensors can also be connected for heat and energy measurement.
|
Feature |
Description |
|---|---|
|
Measurement Range |
DN15–DN6000 (Clamp-on & Insertion) / DN6–DN2000 (Inline) |
| Fluid Temperature | -30 °C ... +160 °C |
| Measurement Accuracy | 0.5% |
| Supply Voltage | DC 24 V or AC 85–264 V |
| Outputs | 4–20 mA, relay, frequency |
| Communication | RS485 (Modbus RTU) |
| Protection Class | IP68 |
| Temperature Sensors | PT100 / PT1000 (3 or 4-wire) |
| Mounting Types | Clamp-on, Insertion, Inline (flanged/threaded) |
